SPECIFICATIONS

Brand Name: DJI

Built-in Battery: Yes

Choice: yes

Communication: WireLess

Diaphragm: S-Mall

High-concerned chemical: None

Package: Yes

Polar Patterns: Omnidirectional

Set Type: Transmitter Sets

Style: Lavalier Microphone

Transducer: Electret Microphone

Use: Home Studio

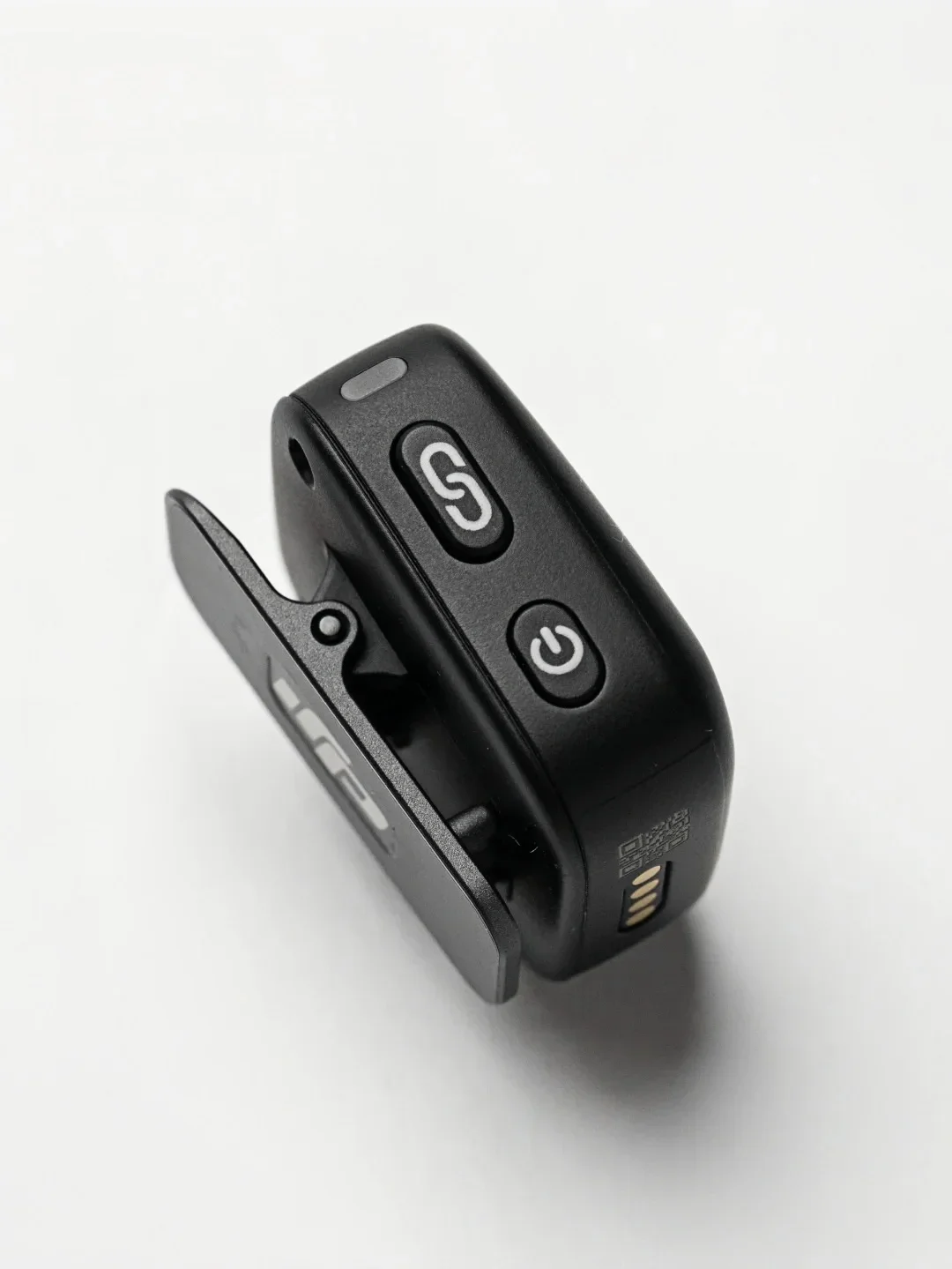

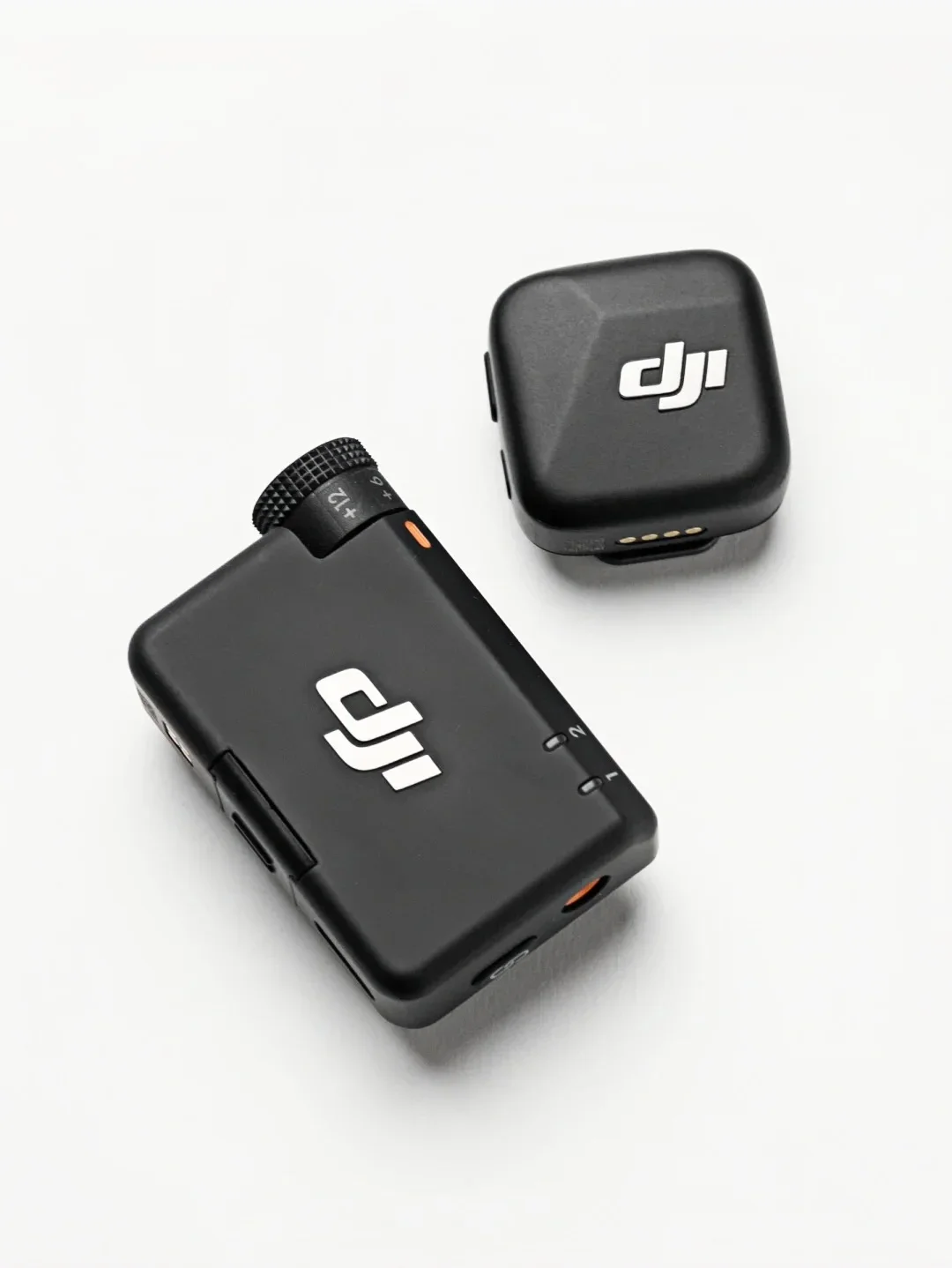

Small and light, no sense of wearing:

The transmitter is small and light, weighing only 10 grams[1], and supports a variety of wearing methods such as magnetic suction and clamping. It will not fall off the collar, and will not turn inside out even when worn on a thin T-shirt, making it more beautiful when photographing.

High-quality audio, stable transmission:

The receiver can be paired with two transmitters at the same time; Mic Mini supports omnidirectional reception, and excellently restores rich sound details. High-quality audio can be transmitted stably within 400 meters[2], and the reception is still stable even in a noisy environment.

Charging box has a long battery life of 48 hours:

The receiver and transmitter can last up to 10.5 and 11.5 hours respectively. With a fully charged charging box, it can achieve a long battery life of 48 hours, which can easily cope with long-term shooting scenes such as travel photography and interviews.

DJI OsmoAudio™ product direct connection, original sound quality:

The transmitter can be directly connected to Osmo Action 5 Pro, Osmo Action 4 or Osmo Pocket 3 without a receiver, which can bring original sound quality, pure and transparent listening, and also simplify the creation equipment and process, which is efficient and time-saving.

Active noise reduction, two adjustable gears:

The weak gear is suitable for quieter indoor scenes and reduces the loss of human voice; the strong gear can better adapt to noisy environments, greatly reduce environmental noise, record clear human voice, and the sound quality does not lose transparency.

Automatic limiter, anti-explosive sound:

When the automatic limiter function is turned on, when the volume is too high, DJI Mic Mini will automatically lower the volume to avoid explosive sound, providing guarantee for audio availability, which is especially useful for scenes that are difficult to re-record, such as self-media creation.

General :

Microphone Directivity: Omni-directional

Frequency Response: Low Cut Off: 20 Hz to 20 kHz / Low Cut On: 100 Hz to 20 kHz

Maximum SPL: 120 dB SPL

Equivalent Noise: 24 dBA

Maximum Transmission Distance: 400 metres (Measured outdoors in an open, interference-free and unobstructed environment.)

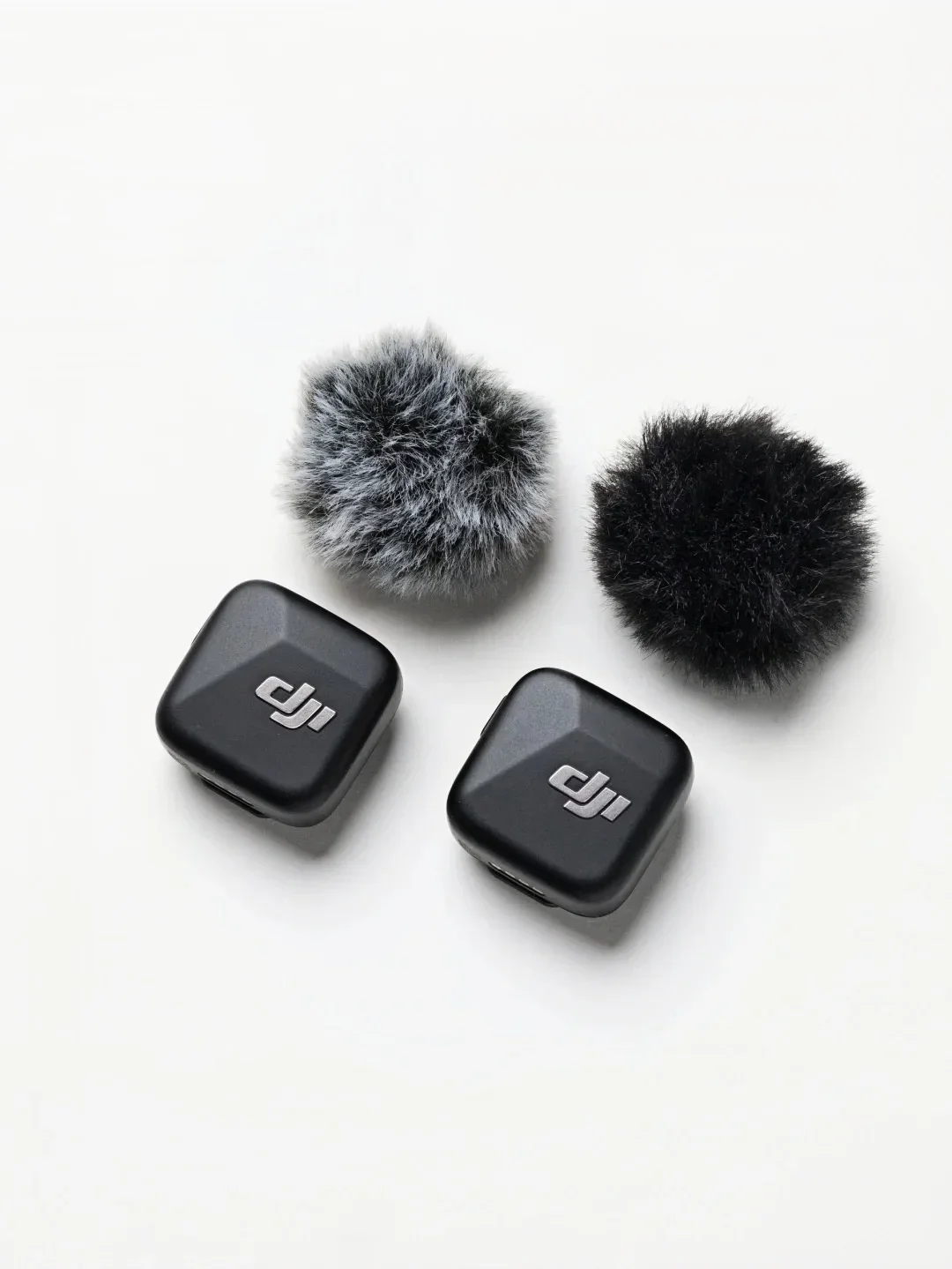

Mic Mini Transmitter:

Dimensions:Length 26.55 mm, Width 26.06 mm, Height 15.96 mm

Weight:10g (without magnetic tabs)

Wireless Mode:GFSK 2Mbps

Equivalent Omni-directional Radiated Power (EIRP): <20 dBm

Wireless mode operating frequency: 2.4000 GHz to 2.4835 GHz

Bluetooth protocol: BT 5.3

Bluetooth operating frequency: 2.4000 GHz to 2.4835 GHz

Bluetooth transmit power (EIRP): <20 dBm

Battery Type: Li-ion

Battery Capacity: 114 mAh

Battery Energy: 0.44 WHr

Battery voltage: 3.87 volts

Charging specification: 5 volts maximum

Charging Ambient Temperature: 5°C to 45°C

Operating ambient temperature: -10°C to 45°C

Charge Time: 1 hour 30 minutes

Operating time: 11.5 hours

**Measured using DJI Mic Mini (1 TX + 1 RX), with noise cancellation off, during close-range audio recording under interference-free conditions, with the transmitter connected to the receiver and the receiver connected to a camera via the Camera Audio Cable (3.5mm TRS).

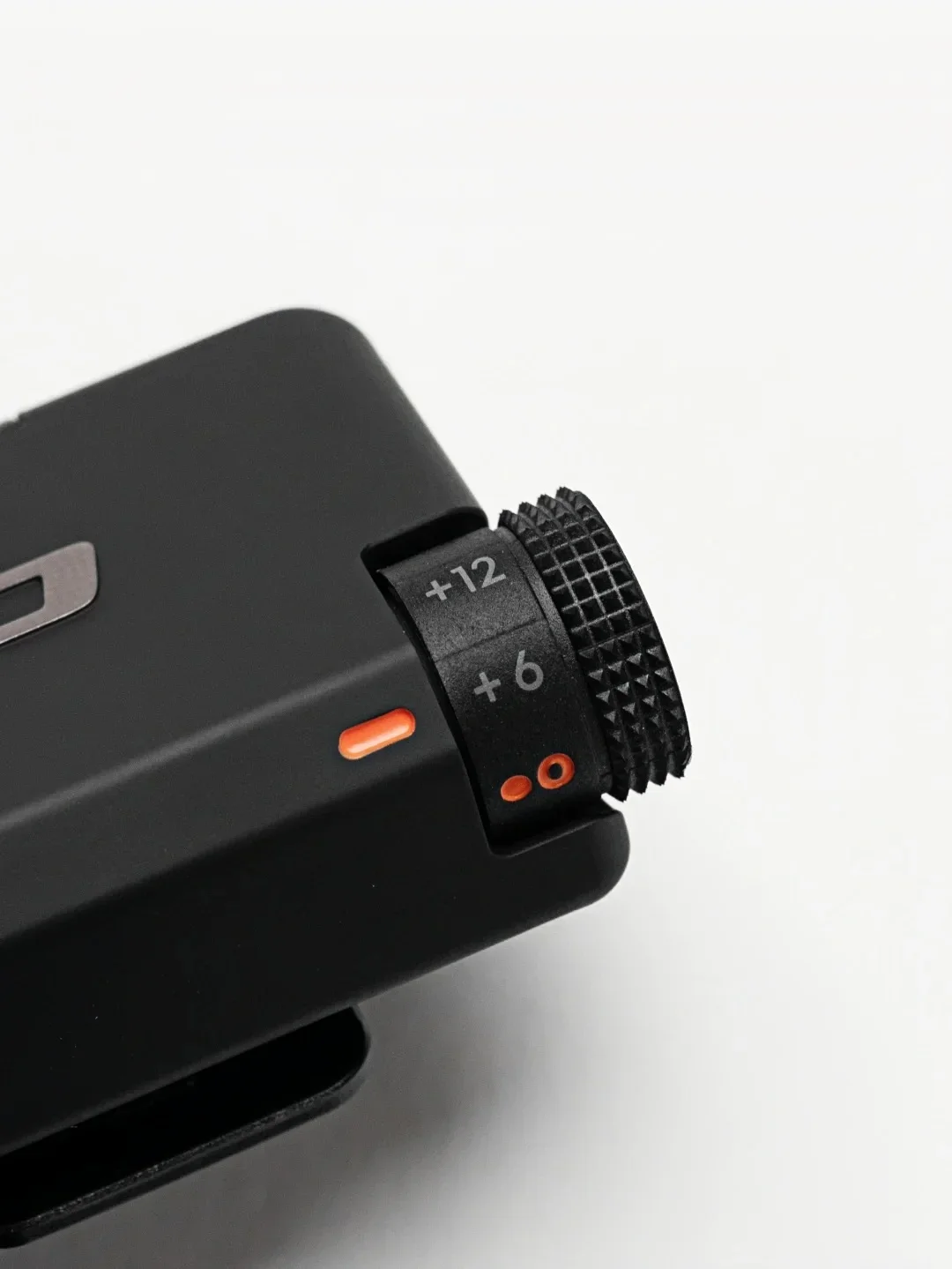

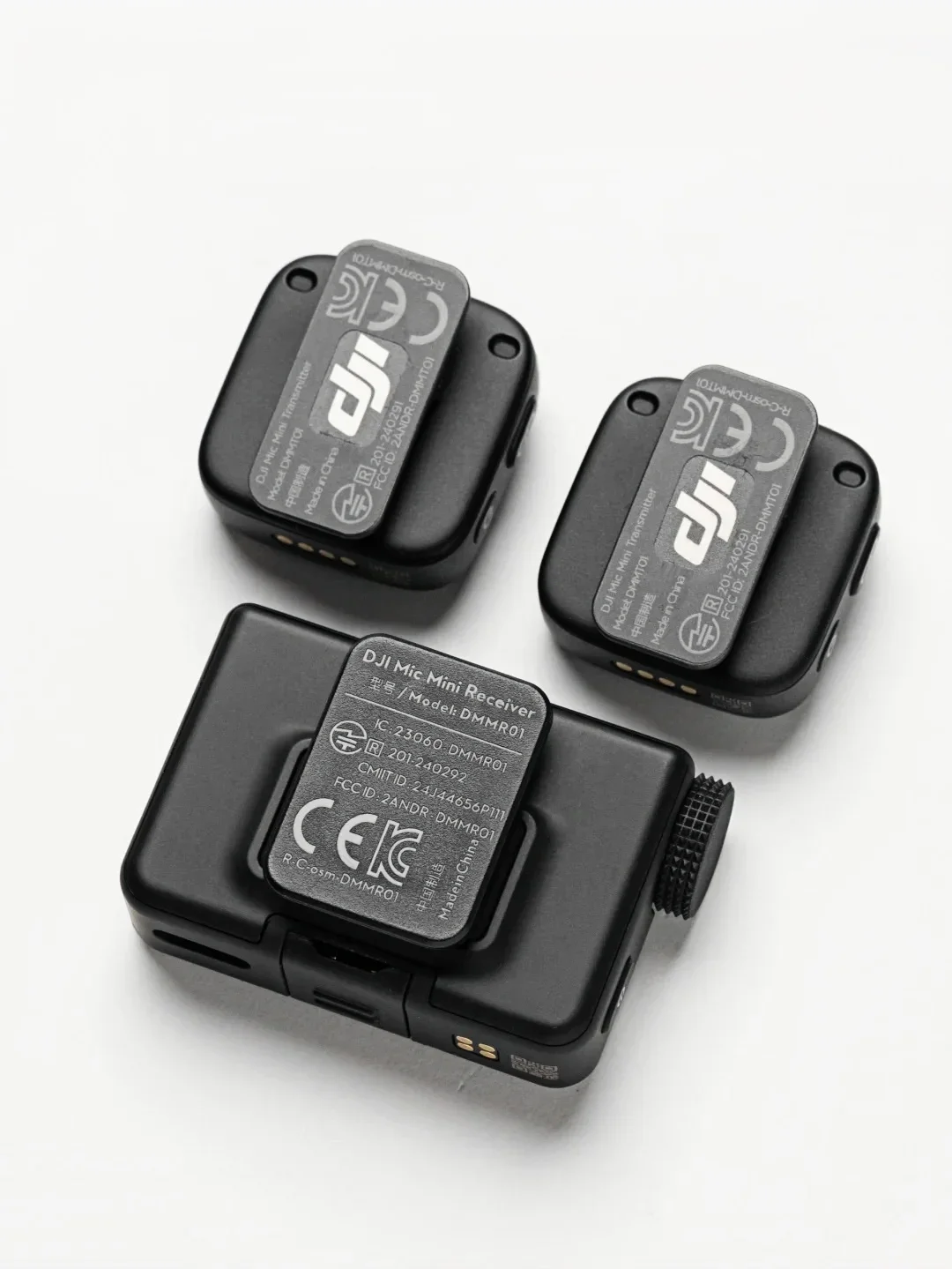

DJI Mic Mini Receiver:

Dimensions: Length 46.50 mm, Width 29.61 mm ,Height 19.32 mm

Weight: 17.8 (including interface cover)

Wireless modes: GFSK 2Mbps

Equivalent Omni-directional Radiated Power (EIRP): <20 dBm

Operating frequency: 2.400 GHz to 2.4835 GHz

Battery Type: Li-ion

Battery capacity: 170 mAh

Battery energy: 0.66 watt-hours

Battery voltage: 3.87 volts

Charging specifications: 5 volts maximum

Charging ambient temperature: 5°C to 45°C

Operating ambient temperature: -10°C to 45°C

Charging time: 1 hour and 40 minutes

Operating time: 10.5 hours

**Measured using DJI Mic Mini (1 TX + 1 RX), with noise cancellation off, during close-range audio recording under interference-free conditions, with the transmitter connected to the receiver and the receiver connected to a camera via the Camera Audio Cable (3.5mm TRS).

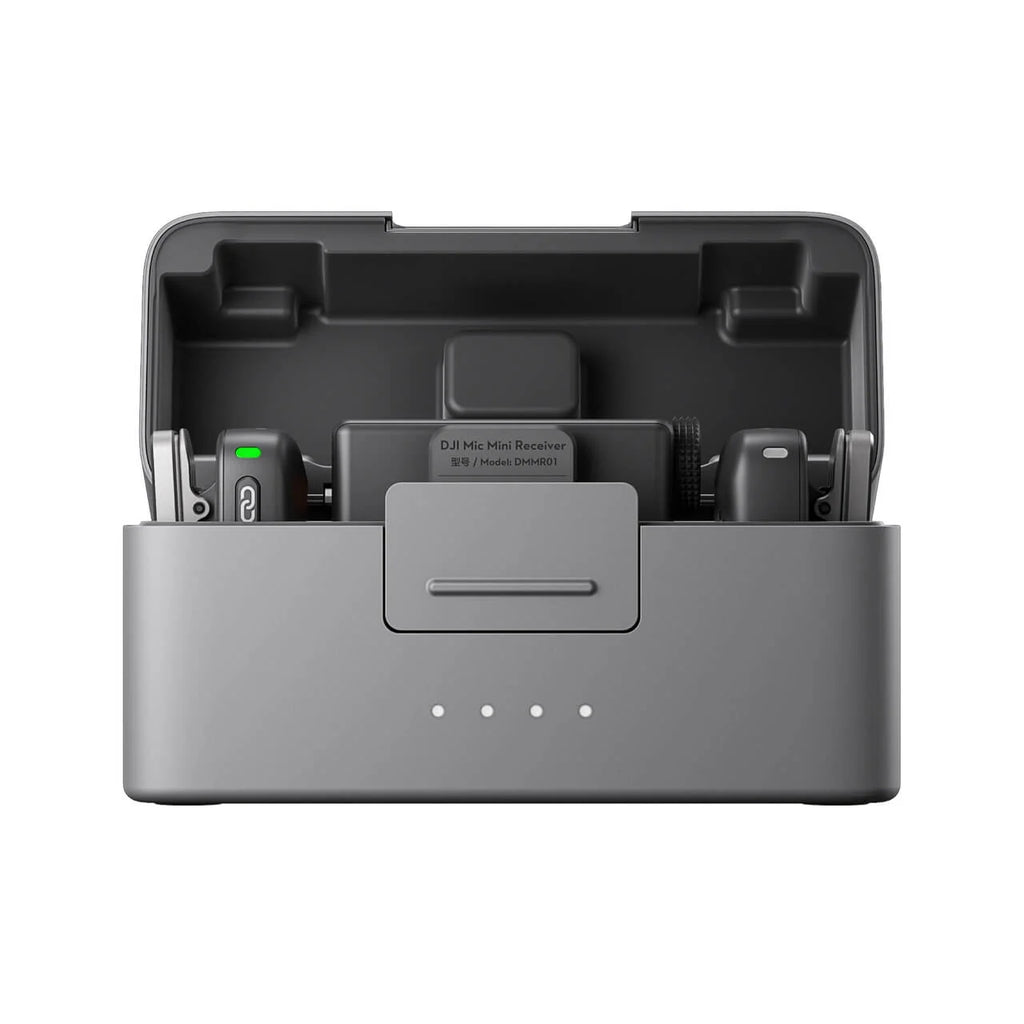

Mic Mini Charging Case:

Dimensions: L 96.10 mm, W 41.00 mm, H 59.35 mm

Weight: 139g

Battery type: Li-ion

Battery capacity: 1950 mAh

Battery Power: 7.55 WHr

Battery voltage: 3.87 volts

Charging specifications: Maximum 5V, 1.5A to 2A

Charging ambient temperature: 5°C to 40°C

Operating ambient temperature: 5°C to 45°C

Charge time: 2 hours

**Number of times the charging case charges transmitters and receivers: Simultaneous charging of 2 transmitters and 1 receiver, approx. 3.6 charges

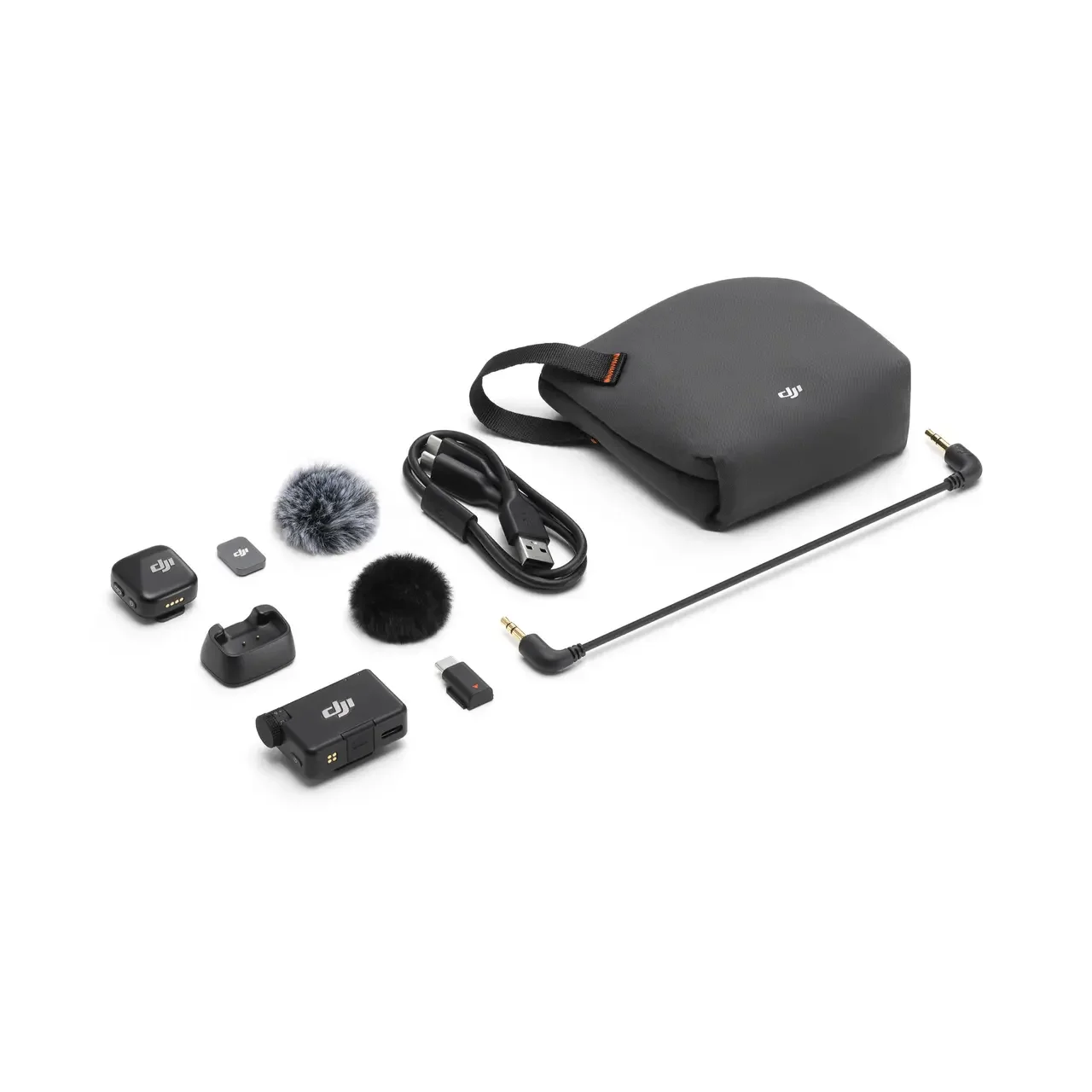

DJI Mic Mini (1 TX + 1 RX):

DJI Mic Mini Transmitter (Infinity Black) × 1

DJI Mic Mini Receiver × 1

DJI Mic Mini Camera Audio Cable (3.5mm TRS) × 1

DJI Mic Mini Mobile Phone Adapter (Type-C) × 1

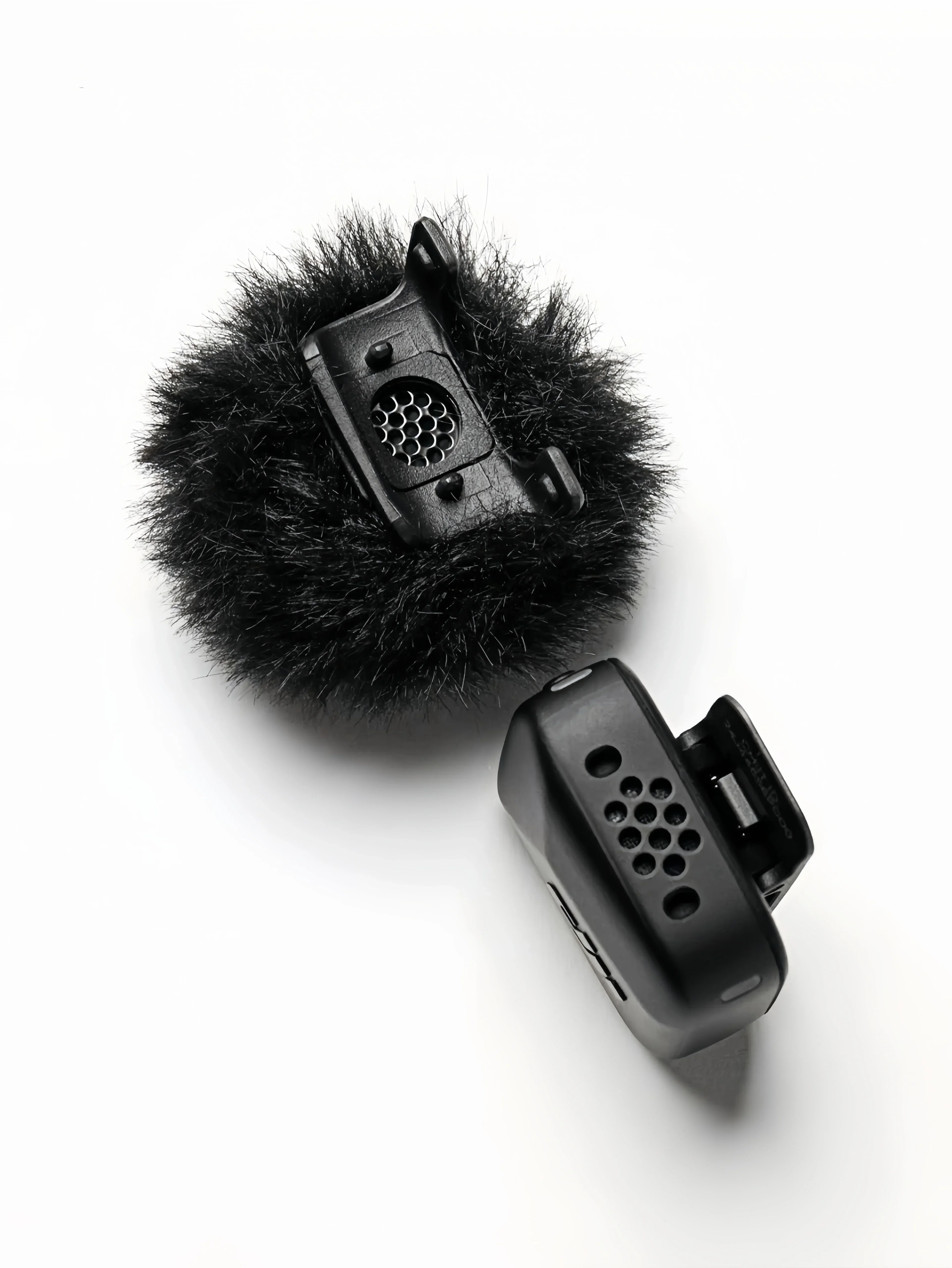

DJI Mic Mini Windscreen (Black/Gray) × 1

DJI Mic Mini Windscreen (Black) × 1

DJI Mic Mini Clip Magnet × 1

DJI Mic Mini Compact Carrying Pouch × 1

DJI Mic Splitter Charging Cable × 1

DJI Mic Mini Transmitter Charging Dock (Infinity Black) × 1

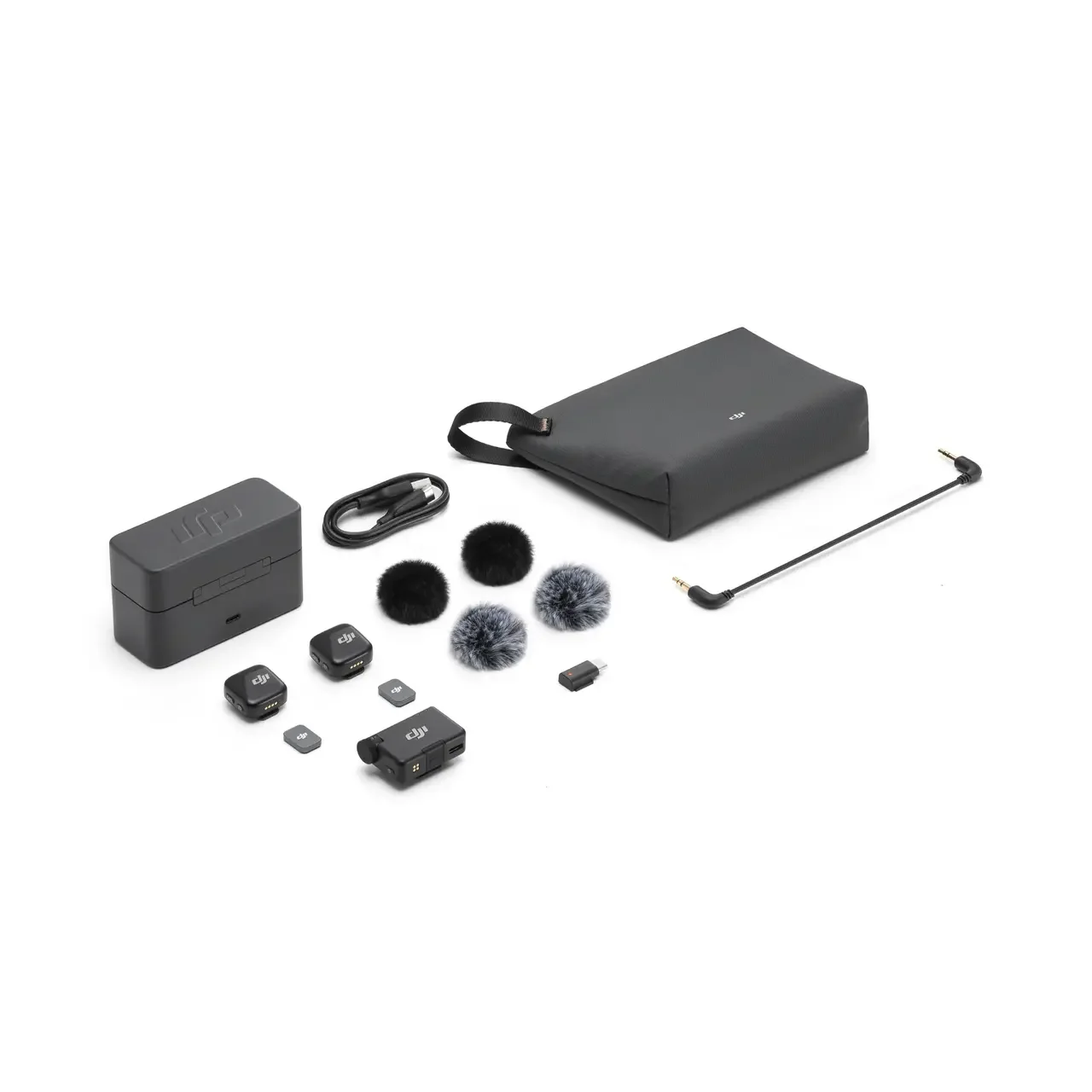

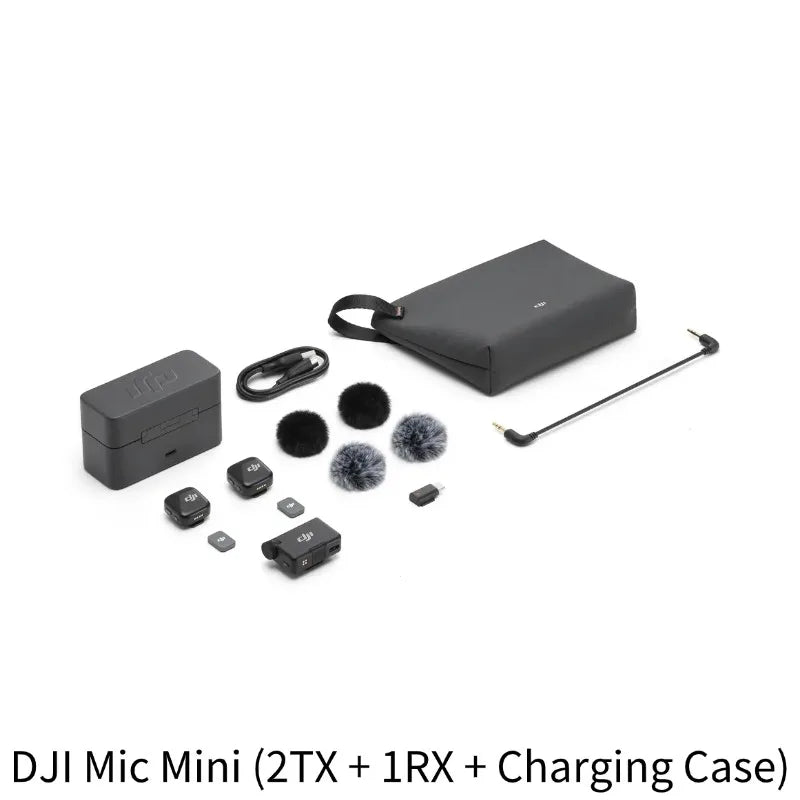

DJI Mic Mini (2 TX + 1 RX + Charging Case):

DJI Mic Mini Transmitter (Infinity Black) × 2

DJI Mic Mini Receiver × 1

DJI Mic Mini Charging Case × 1

DJI Mic Mini Camera Audio Cable (3.5mm TRS) × 1

DJI Mic Mini Mobile Phone Adapter (Type-C) × 1

DJI Mic USB-C Charging Cable × 1

DJI Mic Mini Windscreen (Black/Gray) × 2

DJI Mic Mini Windscreen (Black) × 2

DJI Mic Mini Clip Magnet × 2

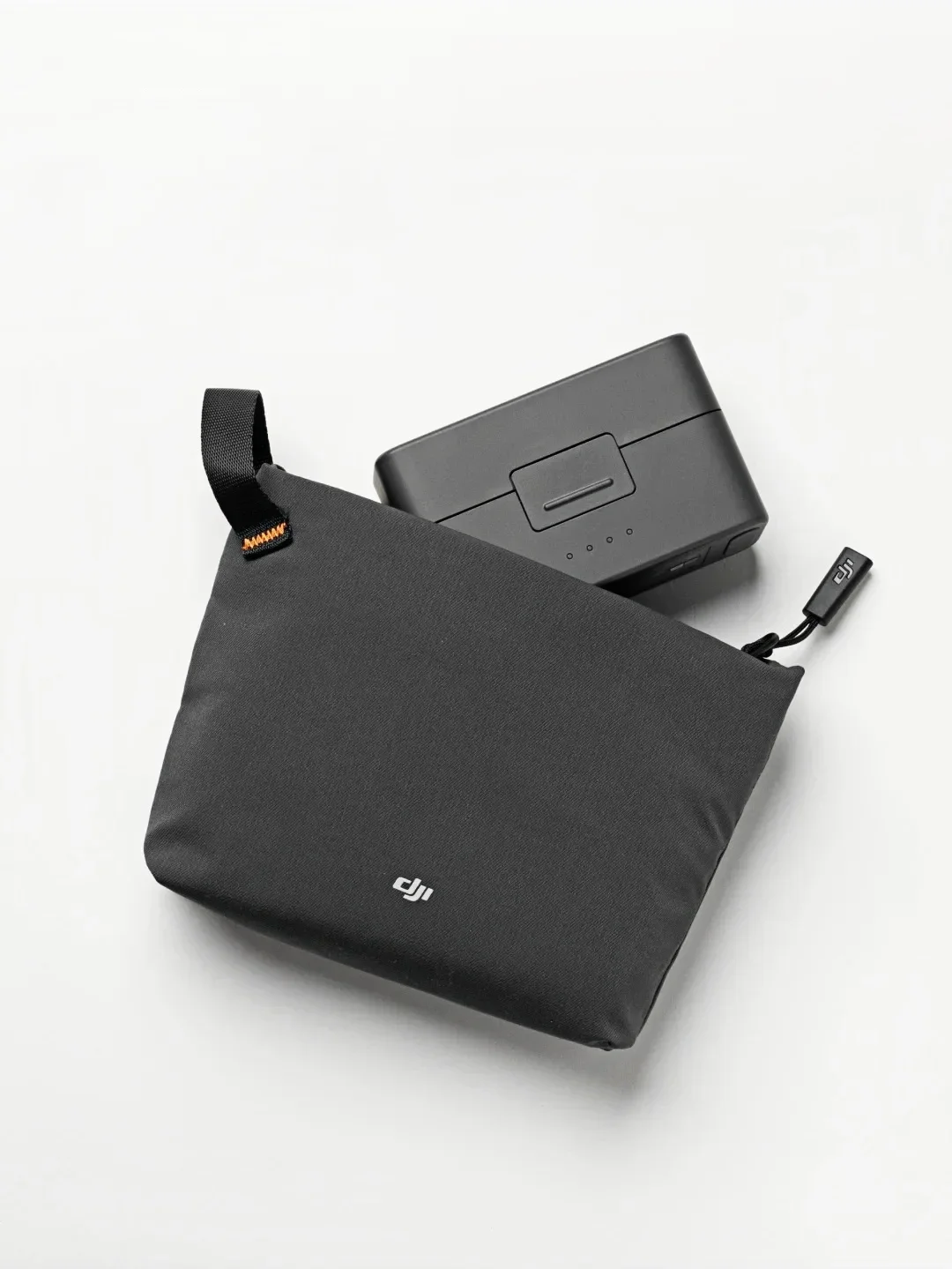

DJI Mic Mini Carrying Pouch × 1

What can I use DJI Mic Mini with?

You can use DJI Mic Mini with a range of devices, including cameras, smartphones (via Type-C/Lightning adapter or via direct Bluetooth connection) *, computers, and Osmo Mobile 6 (requires a smartphone for use).

DJI Mic Mini supports the DJI OsmoAudio™ connection ecosystem. The transmitter supports direct connection to Osmo Action 5 Pro, Osmo Action 4, or Osmo Pocket 3 without a receiver, delivering premium audio and simplifying your gear and workflow.

For a full list of compatible devices, please refer to the Downloads page on the DJI Mic Mini official webpage.(https://www.dji.com/pl/mic-mini/downloads)

* When connecting directly to a smartphone via Bluetooth, it does not support audio recording when using with the phone's native camera; it only supports filming through third-party apps. For a list of compatible apps, please refer to the product page on the official website.

What are the differences between different DJI Mic Mini combos? How should I choose which one is right for me?

DJI Mic Mini (2 TX + 1 RX + Charging Case) includes a charging case, one receiver, and two Infinity Black transmitters. It provides extended battery life and is suitable for two-person audio recording.

DJI Mic Mini (1 TX + 1 RX) includes one receiver and one Infinity Black transmitter, suitable for solo creators and other single-person audio recording scenarios.

How many recording modes does DJI Mic Mini have?

DJI Mic Mini has three recording modes: S (Stereo), M (Mono), and Ms (Mono Safety Track).

1. S: Stereo mode. Audio from the two transmitters is recorded via separate channels.

2. M: Mono mode. In Mono mode, the audio recorded by the two transmitters will be combined into one channel.

3. Ms: Mono with Safety Track mode. DJI Mic Mini will record dual tracks, with the main track at normal volume and a backup track at -6 dB to protect against distortion in cases of sudden source volume increases.

* If you use Ms (Mono Safety Track) mode, you will need to separate the tracks during post-production.

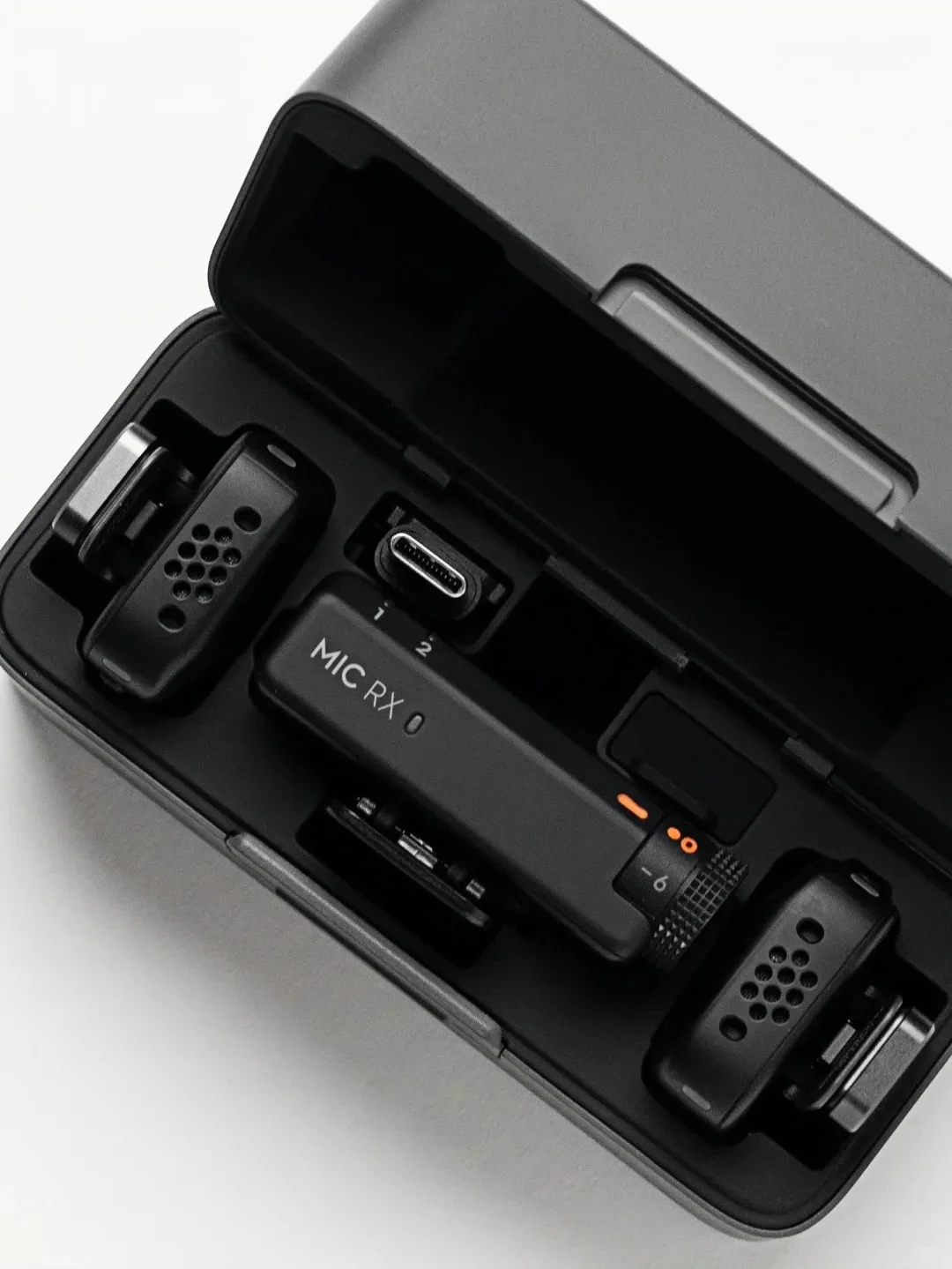

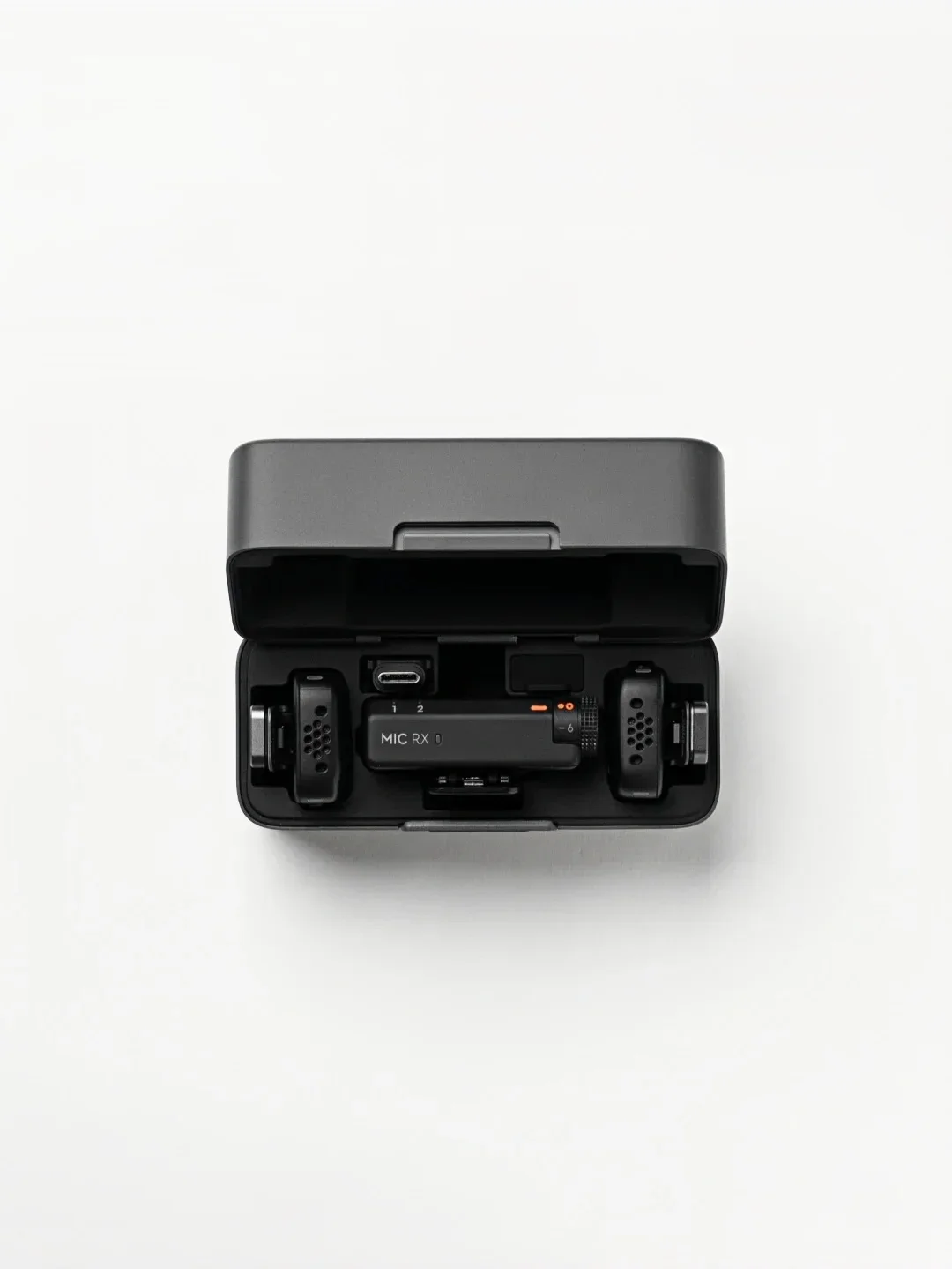

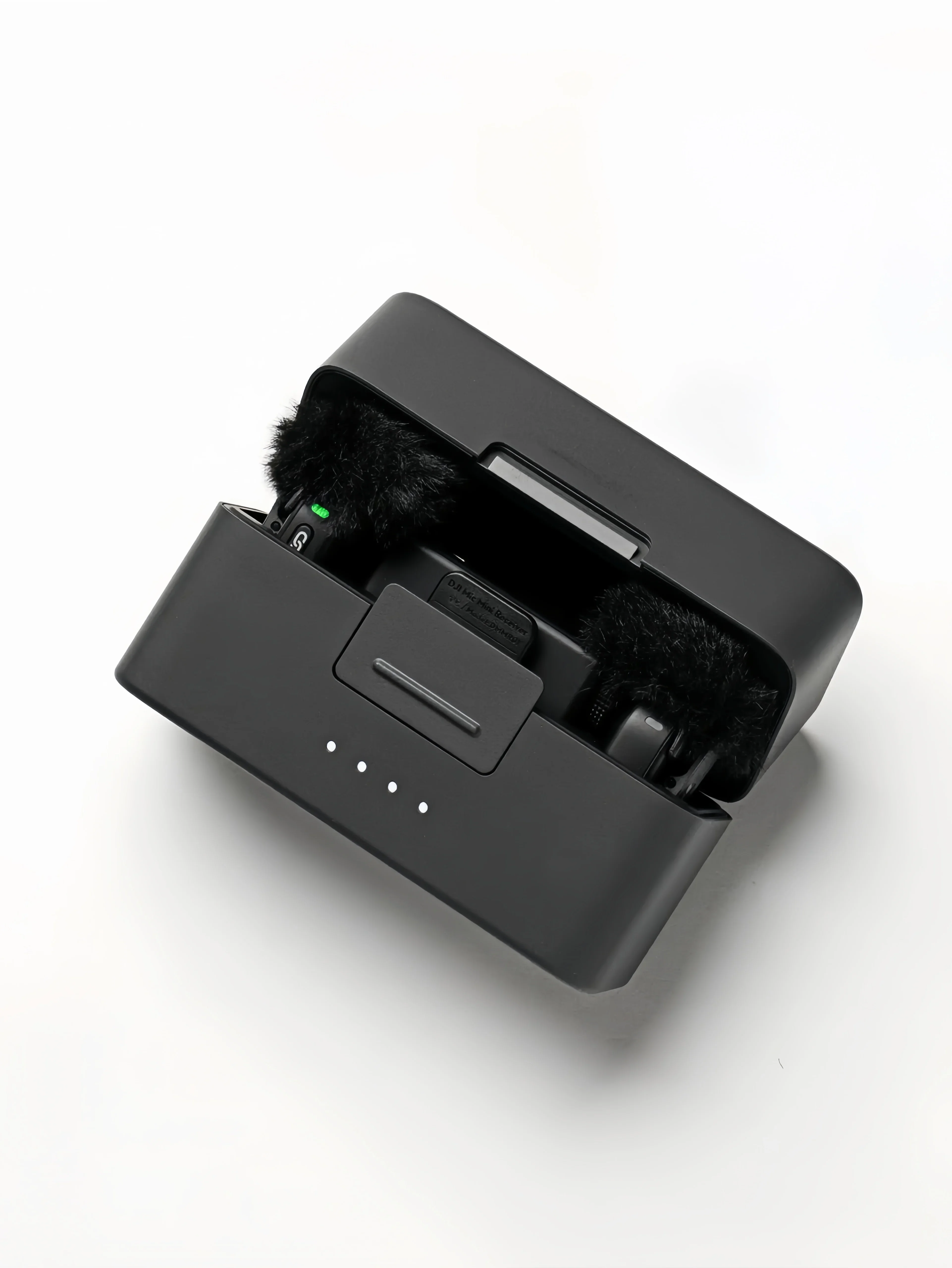

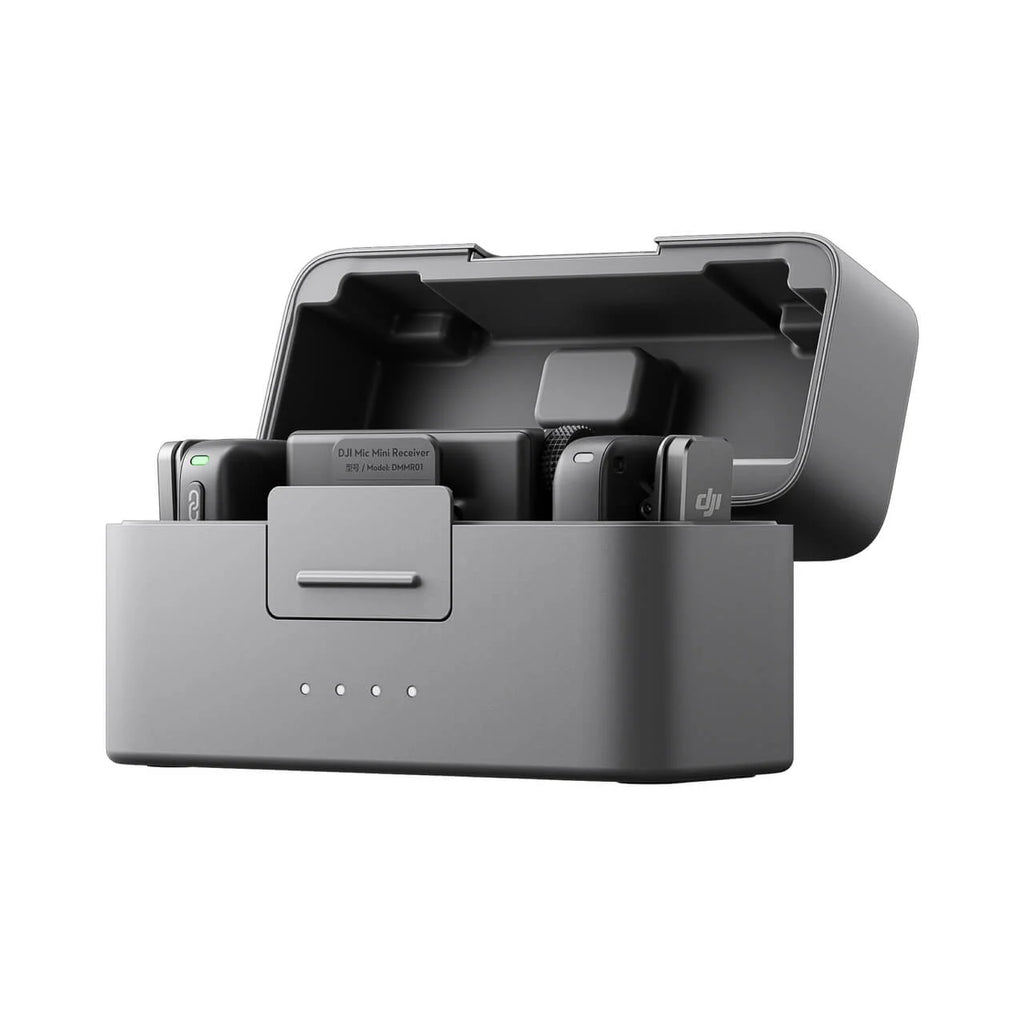

What functions does the DJI Mic Mini Charging Case provide?

The DJI Mic Mini Charging Case can be used for linking the transmitters with the receiver, as well as storing the transmitters, the receiver, and mobile phone adapters (Type-C and Lightning). When fully charged, it can charge two transmitters and one receiver approx. 3.6 times.

* The DJI Mic Mini Mobile Phone Adapter (Lightning) is sold separately.

What devices can the DJI Mic Mini transmitter connect to wirelessly? How many transmitters can these devices connect to simultaneously?

DJI Mic Mini supports the DJI OsmoAudio™ connection ecosystem. DJI Mic Mini transmitters can directly connect to select DJI products (one TX for Osmo Action 4, and up to two TX for Osmo Pocket 3 and Osmo Action 5 Pro).

DJI Mic Mini transmitters can directly connect to your smartphone via Bluetooth. When the transmitter directly connects to a smartphone, the noise cancellation level cannot be adjusted in the Mimo app and will default to the Strong level. Low Cut settings are also not supported in the Mimo app.

Does DJI Mic Mini support simultaneous charging of a mobile phone and the receiver?

Yes. When the DJI Mic Mini receiver is connected to your phone via mobile phone adapter, you can use a charging cable to charge both the mobile phone and the receiver through the receiver's USB-C port.

Where can I find the DJI Mic Mini user guide?

We recommend checking out the beginner's guide to DJI Mic Mini, which includes tutorial videos, user manual, and comprehensive instructions covering unboxing, setup, activation, and device connection.(https://repair.dji.com/help/content?customId=en-us03400011680&spaceId=34&re=US&lang=en&documentType=artical&paperDocType=paper)
